Cree XML2 XM L2 T6 10W High Power LED Emitter Cool White Neutral White Warm White
Click to see details
Cree XML2 XM L2 T6 10W High Power LED Emitter Cool White Neutral White Warm White

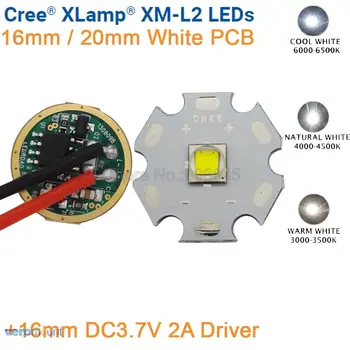

Cree XML2 XM-L2 T6 10W High Power LED Emitter Cool White Neutral White Warm White 16mm Black or White PCB + DC3.7V 2.5A Driver

100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 0.04 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Cree XML2 XM-L2 T6 10W High Power LED Emitter Cool White Neutral White Warm White 16mm Black or White PCB + DC3.7V 2.5A Driver

The XLamp XM-L LED is the industry’s highest performance, single-die white lighting-class LED. XLamp XM-L is 20% more efficient than XLamp XP-G at the same current, and can deliver 1000 lumens with 100 lumens per Watt efficacy. The XLamp XM-L LED offers Cree’s industry-leading features: wide viewing angle, symmetrical package, unlimited floor life and electrically neutral thermal path.

XLamp XM-L LEDs can enable LED light into new applications that require tens of thousands of lumens, such as high bay and high-output area lighting. XM-L is also the ideal choice for lighting applications where high light output and maximum efficacy are required, such as LED light bulbs, outdoor lighting, portable lighting, indoor lighting and solar-powered lighting.

Features:
Maximam drive current: 3000mA
Low thermal resistance: 2.5C/W
Maximum junction temperature: 150C
Viewing angle: 125′
ANSI-compatible chromaticity bins
Unlimited floor life at <30C/85% RH
Reflow solderable-JEDES J-STD-020C
Electrically neutral thermal path

Technical Parameters:
Quantity:1pcs
Model Type: Cree XM-L2
Emitted Color :Cool White/Neutral White/Warm White
Color Temperature: 6500K/4500K/3000K
Viewing Angle: 110 Degree
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 3.0A
Power: 10W
Intensity Luminous (Iv): 280-975LM
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°
Diameter :16mm
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable – JEDEC J-STD-020C
Electrically neutral thermal path

Parameters for Driver:
Quantity: 1pcs
Working temperature: -20-80 Deg
Color: Black
Input Voltage: DC3.7V ~ 4.2V
Output Voltage: DC3.7V
Output current: 2.4A~2.5A
Diameter: 16mm
Thickness: 3.5mm
5 Modes: Low (10%), mid (50%), high (100%), strobe (100%), SOS (100%)

Successful usage of high power LEDs:

Heat management

Applications with high power LEDs need enduring, adequate and plane heat conduction from the first moment of use. It is very important and neccessary to get the heat off the devices to ensure the maximum light output, lifetime and efficiancy.

Drive management

LEDs should be run with a constant current in addition to the manufacturers recommendations. To ensure this we recommend to take constant current power supplies because resistors are always a risk factor in high power LED applications.

EMC protection

LEDs are sensitive against heat and electric charge. Please avoid any kind of short circuits or electric discharge to the illuminant. The chip can be damaged or even destroyed.

Storage / JEDEC level

The storage temperature should be from -30″ up to + 80″ in dry ambience. After opening a sealed bag the content should be mounted rapidly. Once absorbed humidity can be removed by tempering the LEDs in some cases. More information can be found in the manufacturers datasheets or on the manufacturer homepages.

Soldering conditions

Each LED has its own soldering conditions that the user should pay attention to. After the launched lead free processing specifications many standarts have changed. Information about recommended soldering can be found in the manufacturers datasheets or on the manufacturer homepages.

Package Include:

1 x XML-L2 LED Emitter mounted on 16mm PCB (Emitting Color and PCB color as selected)

1 x 16mm DC3.7V Driver

Note: This item will be shipped within 2 days from the date of payment verification by registered China Post airmail with free tracking number. Each will be wrapped by bubble bags only, no retail color box packaging.

The more you order, the cheaper you can get!

Welcome Wholesale!
